700 Picture Window

highly-efficient system – engineered for strength and durability

Description

700 Picture

The Ecoshield 700 new construction vinyl picture window is styled to fit almost any décor.

An excellent complement to our AWNING and CASEMENT windows.

All about the views

Picture windows are fixed windows that do not open but provide a large unobstructed view ideal for buildings surrounded by vast or outstanding landscapes.

Our picture windows can be installed in single or multi-pane configurations.

Materials

Standard

High-grade PVC delivers exceptional strength and thermal performance
White or beige Interior
Thermal Fusion Welded Frame

More About Vinyl Construction

Glass Options

Energy Star III and energy star U-4 glazing packages exceed the highest current energy star standards.

Our Energy Star U4 and Energy Star III glazing packages can lower the average home energy bill by 30 to 40 percent, and cut co2 output by 1,600 pounds per year*

Ecoshield Windows Are Built with Advanced Technology Duralite Warm-Edge Spacers

Energy Star III

Options

Energy Star III
(3/4″) (recommended)
Energy Star U-4
(3/4″)
DOE-R5
(1″)
Clear insulated glass (3/4″)
Impact Resistance, Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

More About Glass Options

Performance

Standard

DP 50 Rating

More about DP Ratings

Construction

Standard

Integral Nail Fin and J-Channel

Options

3″ Cambridge Flat Casing

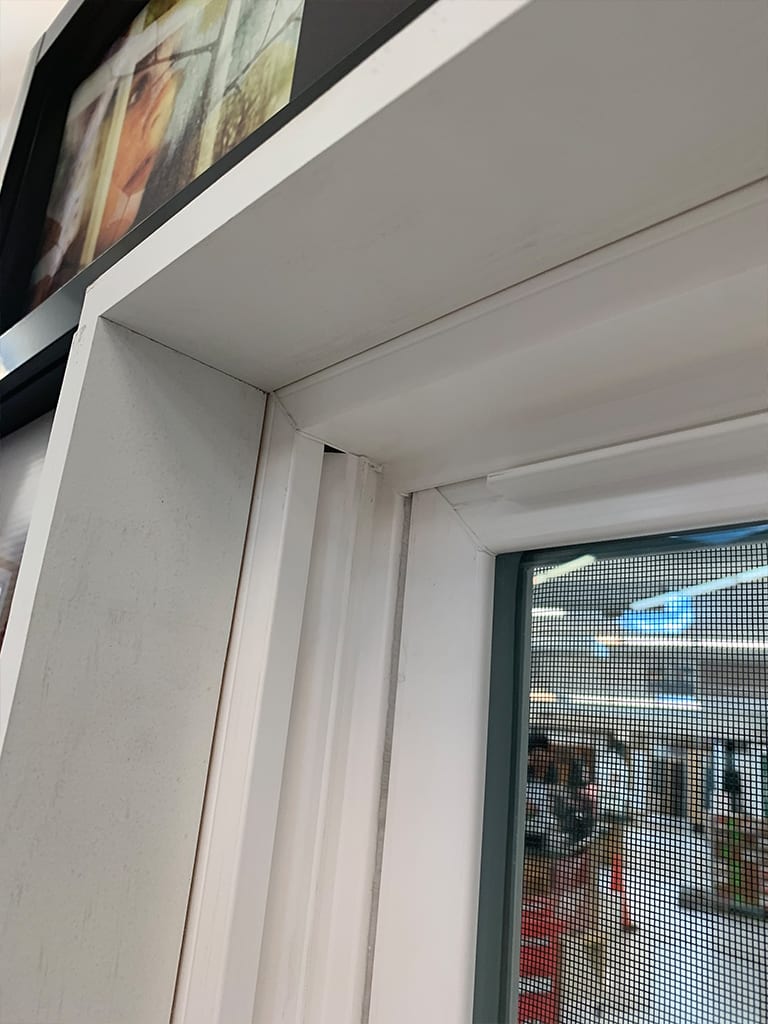

Primed Applied Solid Pine Extension Jambs 4-9/16″, 6-9/16″ and Custom

Grills

Multiple Grill Patterns Available

3/4″ Contoured Grill Between the Glass

OUR GRILL BETWEEN THE GLASS INCORPORATES A DELUXE SHADOW BAR GIVING THE LOOK AND FEEL OF DIVIDED PANES.
3/4″ Contoured SDL with spacer bar

OUR SIMULATED DIVIDED LIGHT GRILL INCORPORATES A SPACE GIVING THE LOOK OF TRUE DIVIDED LIGHT

Grid Patterns

Profiles

Thermal Data

NFRC Thermal Performance Data – 700


Glazing	U-Value	SHGC	VLT
DOE – R5 – Triple	0.21	0.22	0.38
Low E w/ Argon	0.26	0.28	0.51
High Perf. Low E	0.30	0.29	0.51
Clear	0.45	0.61	0.63

Cross Section

700 Picture Window with fin only

Sizing

700 Picture Windows

Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
1-5 X 3-0	16 1/2 X 35 1/2	17 X 36	10 1/8 X 29 1/8	1-5 X 3-0	16 1/2 X 35 1/2	17 X 36
1-5 X 3-5	16 1/2 X 40 1/2	17 X 41	10 1/8 X 34 1/8	1-5 X 3-5	16 1/2 X 40 1/2	17 X 41
1-5 X 4-0	16 1/2 X 47 1/2	17 X 48	10 1/8 X 41 1/8	1-5 X 4-0	16 1/2 X 47 1/2	17 X 48
1-5 X 5-0	16 1/2 X 59 1/2	17 X 60	10 1/8 X 53 1/8	1-5 X 5-0	16 1/2 X 59 1/2	17 X 60
1-5 X 6-0	16 1/2 X 71 1/2	17 X 72	13 1/8 X 65 1/8	1-5 X 6-0	16 1/2 X 71 1/2	17 X 72
Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
1-8 X 6-0	19 1/2 X 71 1/2	20 X 72	13 1/8 X 65 1/8	1-8 X 6-0	19 1/2 X 71 1/2	20 X 72
1-8 X 3-0	19 1/2 X 35 1/2	20 X 36	13 1/8 X 29 1/8	1-8 X 3-0	19 1/2 X 35 1/2	20 X 36
1-8 X 3-5	19 1/2 X 40 1/2	20 X 41	13 1/8 X 34 1/8	1-8 X 3-5	19 1/2 X 40 1/2	20 X 41
1-8 X 4-0	19 1/2 X 47 1/2	20 X 48	13 1/8 X 41 1/8	1-8 X 4-0	19 1/2 X 47 1/2	20 X 48
1-8 X 5-0	19 1/2 X 59 1/2	20 X 60	13 1/8 X 53 1/8	1-8 X 5-0	19 1/2 X 59 1/2	20 X 60
1-8 X 6-0	19 1/2 X 71 1/2	20 X 72	13 1/8 X 65 1/8	1-8 X 6-0	19 1/2 X 71 1/2	20 X 72
Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
2-0 X 3-0	23 1/2 X 35 1/2	24 X 36	17 1/8 X 29 1/8	2-0 X 3-0	23 1/2 X 35 1/2	24 X 36
2-0 X 3-5	23 1/2 X 40 1/2	24 X 41	17 1/8 X 34 1/8	2-0 X 3-5	23 1/2 X 40 1/2	24 X 41
2-0 X 4-0	23 1/2 X 47 1/2	24 X 48	17 1/8 X 41 1/8	2-0 X 4-0	23 1/2 X 47 1/2	24 X 48
2-0 X 6-0	23 1/2 X 71 1/2	24 X 72	17 1/8 X 65 1/8	2-0 X 6-0	23 1/2 X 71 1/2	24 X 72
Call Size	Manufactured	Rough	DO Upper	DO Lower	Opening	Clear
2-4 X 3-0	27 1/2 X 35 1/2	28 X 36	21 1/8 X 29 1/8	2-4 X 3-0	27 1/2 X 35 1/2	28 X 36
2-4 X 3-5	27 1/2 X 40 1/2	28 X 41	21 1/8 X 34 1/8	2-4 X 3-5	27 1/2 X 40 1/2	28 X 41
2-4 X 4-0	27 1/2 X 47 1/2	28 X 48	21 1/8 X 41 1/8	2-4 X 4-0	27 1/2 X 47 1/2	28 X 48
2-4 X 5-0	27 1/2 X 59 1/2	28 X 60	21 1/8 X 53 1/8	2-4 X 5-0	27 1/2 X 59 1/2	28 X 60
2-4 X 6-0	27 1/2 X 71 1/2	28 X 72	21 1/8 X 65 1/8	2-4 X 6-0	27 1/2 X 71 1/2	28 X 72
