2200 Double Hung

unique design allows for maximum viewing area and light

Description

Our most popular replacement window!

The 2200 series double hung comes standard with features superior over the ordinary replacement window- including thermal performance that will exceed Energy Star , choice of top and bottom sash ventilation , easy clean feature, peace of mind locking system. Fabricated for today’s generation.

Standard ventilation latches and tilt-in sashes make it ideal for both single and multi-unit developments, and the Energy Star U-4 and Energy Star III Glazing Packages exceeds the highest current Energy Star standards.

Ecoshield’s double hung windows allow users to control ventilation flow with vertically sliding sashes that open from both the top and bottom.

The sashes can be opened in three configurations. Either the top or bottom can be fully opened while the opposite sash is closed, or both sashes can be opened halfway simultaneously. In all three positions, the double hung window provides a maximum opening of half the total window size. Each double hung window is equipped with a design feature that holds the open sash or sashes in place at any position.

Our double hung windows also have a tilt-in feature that allow for easy cleaning of the outside window from the inside of the building, making multi-story windows hassle-free to clean.

Materials

Standard

High-grade PVC delivers exceptional strength and thermal performance
Full Fusion Welded Sash and Frame
Equal lite top and bottom sash
Sloped Sill and Interlock Leg
3-1/4″ Frame Depth

More About Vinyl Construction

The unique design of the 2200 DH allows for maximum viewing area and light through a highly rigid slimline frame.

Glass Options

Energy Star U-4 and Energy Star III Glazing Packages exceeds the highest current Energy Star standards.

Our Energy Star U-4 and Energy Star III Glazing Packages can lower the average home energy bill by 30 to 40 percent, and cut CO2 output by 1,600 pounds per year*.

Energy Star III

Energy Star III
(3/4″)
Duralite flexible, warm-edge spacers

Options

Energy Star U4 Glass
(1″)
Clear insulated glass (3/4″)
Tints, Heat Reflection and other options available

* Courtesy Truseal Technologies

More About Duralite Spacers

More About Glass Options

Performance

Standard

DP 40 Rating

Options

DP 50 Rating
Full 3″ Foam insulating Wrap

MORE ABOUT DP RATINGS

Thermal Data

NFRC Thermal Performance Data

GLAZING	U-VALUE	SHGC	VLT	CR

Energy Star DS U4	0.24	0.26	0.48	47	NC
Energy Star III	0.28	0.37	0.51	59	NC
Low E with Argon	0.28	0.28
High Perf. Low E	0.32	0.28	0.51	58	NC

2200 Replacement Windows with Grids

GLAZING	U-VALUE	SHGC	VLT	CR

Energy Star U4	0.24	0.24	0.43	51	NC
Energy Star III	0.28	0.33	0.46	63	NC
High Perf. Low E	0.33	0.25	0.46	55
Clear Clear-Air-Clear	0	0	0	-	All Zones

Screens

Standard

Aluminum Extruded Fiberglass 1/2 screen

Options

Aluminum framed fiberglass full screen
Extruded Aluminum framed locking 1/2 Screen

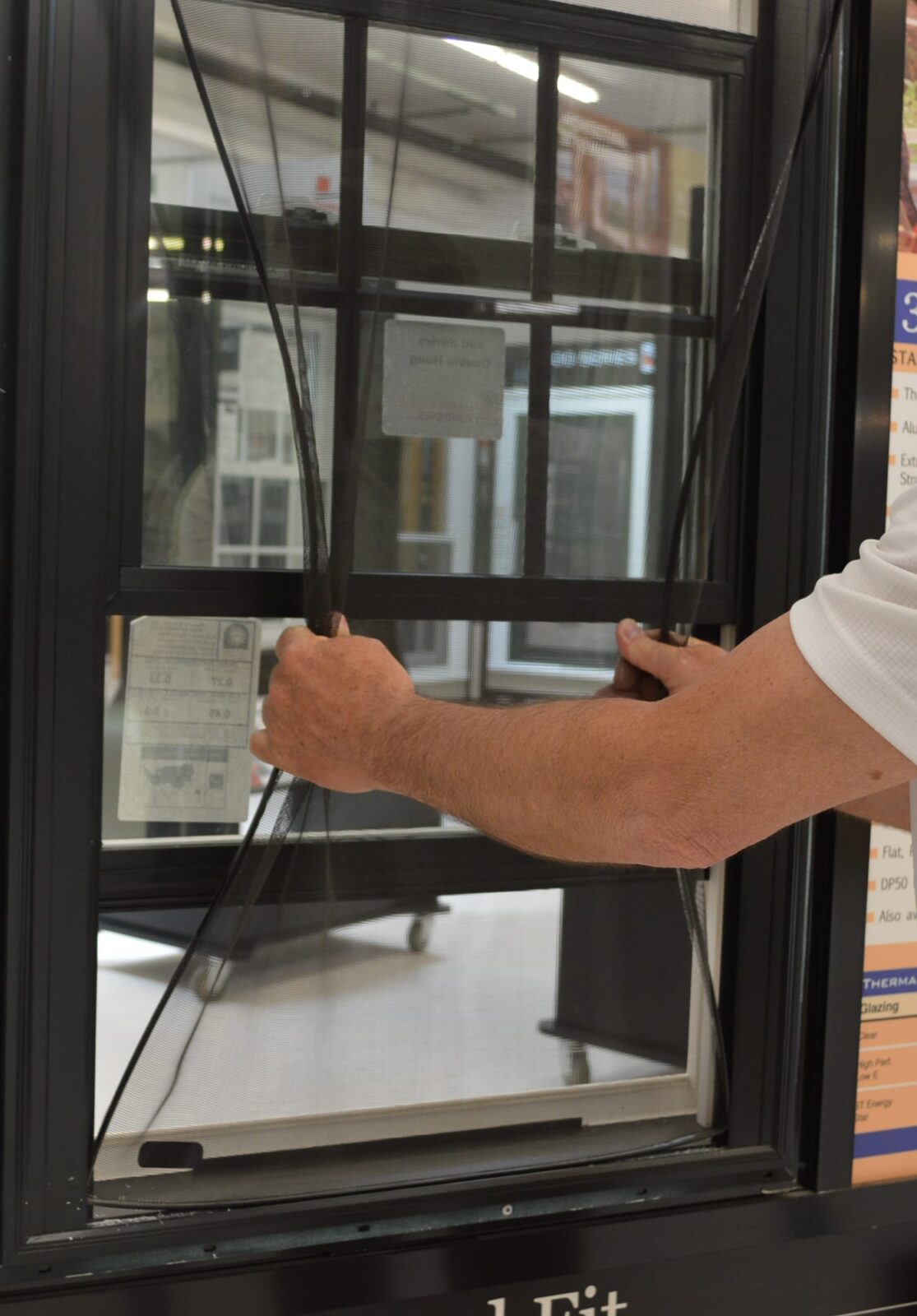

Full Flex Screen
The world’s first and only flexible window screen
Aluminum Screening Material

Screen Options

Hardware

Standard

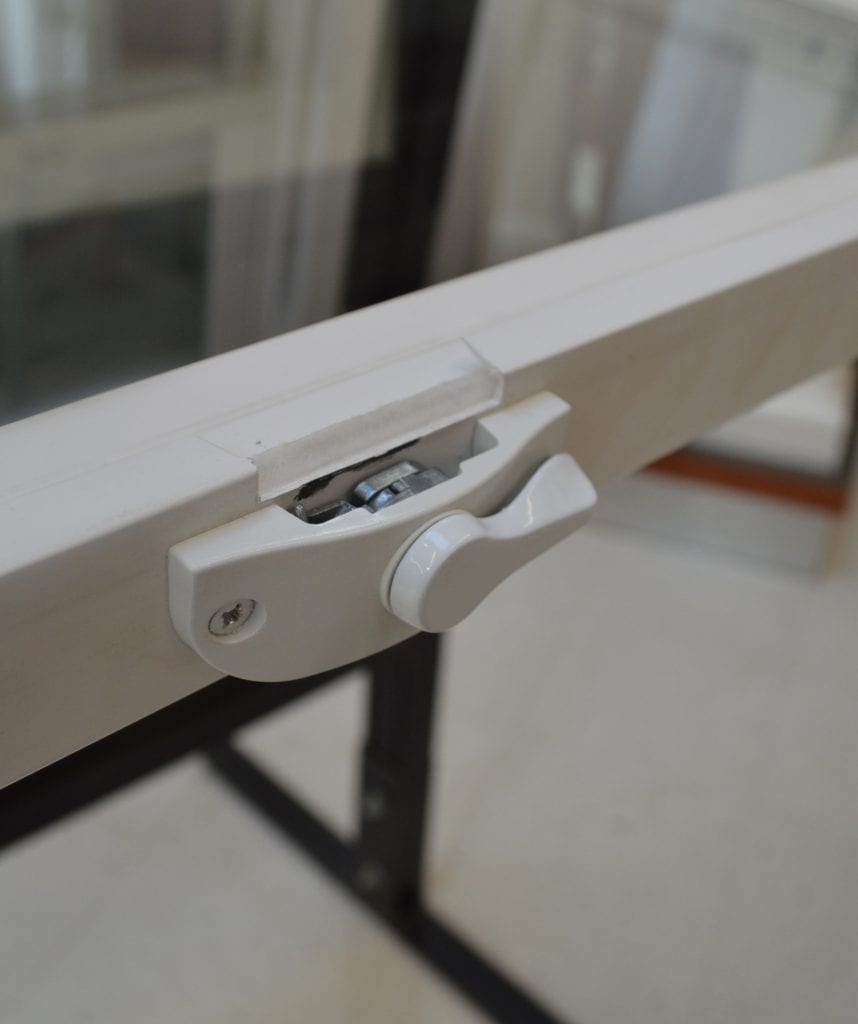

Superior Cam Lock

Our Cam Locks are made of alloyed cast steel to stand up to frequent use. (inferior vinyl windows have plastic locks)
All windows over 23 1/2 inches have 2 sash locks for maximum protection
Produced in white or beige to seamlessly match your window frame
Increased leverage assures a weathertight seal when locked
Night Latches

Options

WOCD sash limiters

Kasson & Keller, Inc. uses high grade alloyed cast steel in our hardware to ensure our windows stand the test of time.

More about Hardware

Standard ventilation latches and tilt-in sashes make it ideal for both single and multi-unit developments.

Grilles

Multiple Grill Patterns Available
5/8″ Contoured Grill Between the Glass

Our Grill Between the Glass incorporates a deluxe shadow bar giving the look and feel of divided panes.
3/4″ Contoured SDL with spacer bar

Our Simulated Divided Light Grill incorporates a space giving the Look of True Divided Light

Grid Patterns

Profiles

Construction

Standard

Composite Reinforced Meeting Rail
Double weather stripped Meeting Rail
Bottom and Top Sash Tilt in for easy cleaning

Options

Full 3″ Foam insulating Wrap

Sizing

PRODUCT	MINIMUM TIP UP SIZE	MAXIMUM LIMITS
2200 Double Hung	17 X 26	Dbl Locks 24 1/8″ TTT, maximum 47 5/8″ x 82 3/4 TTT, maximum UI 110

PLEASE NOTE:

Special Conditions and Design Requirements call for certain glazing components. Architectural specifications and wind loads should always be considered before ordering glazing products. These tooling limits are meant to serve as limits of production capabilities and will not warranty product performance of suitability to their end use. Many glass products that are offered as options are not in stock to fulfill all of the above sizes. Please consult customer Service for questions as to proper use.

Glass must be ordered from an outside source for units larger than 72” one way.
